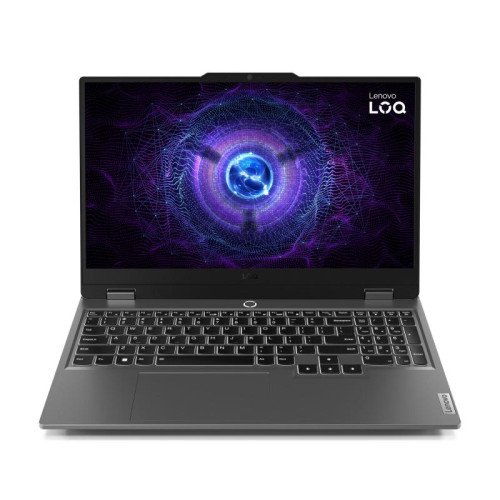

LOQ

Technical Specifications

• Summary: Lenovo LOQ 15IAX9. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i5, Processor model: i5-12450HX. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Product colour: Grey. Weight: 2.38 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB LOQ-15IAX9 CI5-12450HX 15"/16/512GB 83GS004JRM LENOVO
• Category Code: NB
• NB Family name: LOQ
• Processor manufacturer: Intel
• Processor family: Intel Core i5
• Processor generation: 12th gen Intel Core i5
• Processor model: i5-12450HX
• Processor cores: 8
• Processor threads: 12
• Processor boost frequency: 4.4
• Performance cores: 4
• Efficient cores: 4
• Performance-core Max Turbo Frequency: 4.4
• Efficient-core Max Turbo Frequency: 3.1
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• Panel type: IPS
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 144
• Colour name: Luna Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Market positioning: Gaming
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 4800
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 8
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4060
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• Motherboard chipset: Intel HM670
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: White
• Battery technology: Lithium Polymer (LiPo)
• Battery capacity: 60
• Battery life (max): 5.2
• Continuous video playback time: 6.9
• Fast charging: Yes
• AC adapter power: 170
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 140
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Certification: RoHS
• Width: 359.86
• Depth: 258.7
• Height (front): 21.9
• Height (rear): 23.9
• Weight: 2380
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01512
• Unit Calculated Weight: 3
