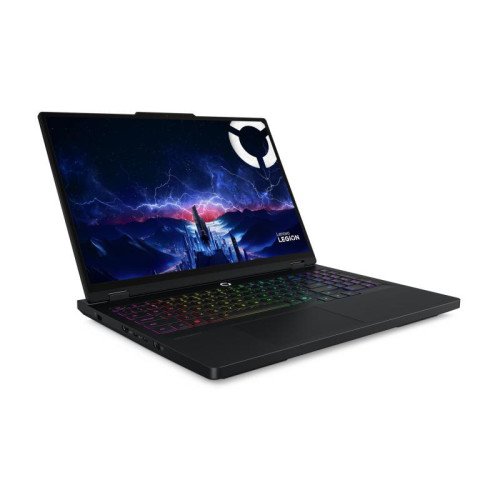

Legion Pro 5 16IRX10

Technical Specifications

• Summary: Lenovo Legion Pro 5 16IRX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i9, Processor model: i9-14900HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Product colour: Black. Weight: 2.4 kg
• Vendor Homepage: https://www.lenovo.com/
• Name: NB LP5-16IRX10 CI9-14900HX 16"/32GB/2TB 83NN001GRM LENOVO
• Category Code: NB
• NB Family name: Legion
• Processor manufacturer: Intel
• Processor family: Intel Core i9
• Processor generation: Intel Core i9 (14th gen)
• Processor model: i9-14900HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.8
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.8
• Efficient-core Max Turbo Frequency: 4.1
• Performance-core base frequency: 2.2
• Efficient-core base frequency: 1.6
• Processor cache: 36
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: IPS
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR 400/Dolby Vision
• Colour name: Eclipse Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC)
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 2
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Iris Xe Graphics
• On-board graphics card model: Intel Iris Xe Graphics
• Audio chip: Realtek ALC3287
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel HM770
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Battery capacity: 80
• AC adapter power: 245
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: RoHS
• Width: 364.38
• Depth: 268.06
• Height (front): 21.69
• Height (rear): 25.95
• Weight: 2400
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.014688
• Unit Calculated Weight: 4
