ThinkBook

Technical Specifications

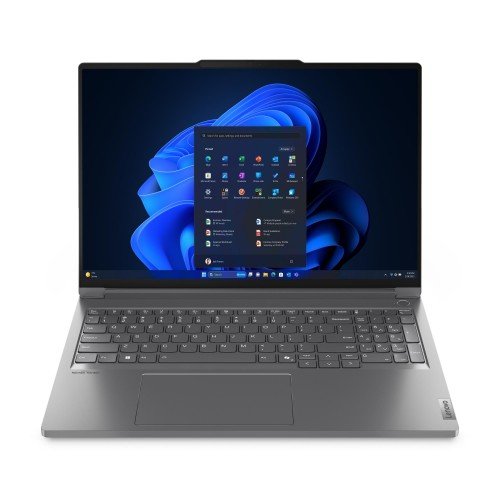

• Summary: Lenovo ThinkBook 16p G5 IRX. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core i7, Processor model: i7-14650HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Product colour: Grey. Weight: 2.2 kg
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkbook/thinkbook-series/lenovo-thinkbook-16p-gen-5-(16-inch-intel)/len101b0042
• Name: NB TB 16P G5 IRX CI7-14650HX/16" 32GB/1TB 21N5001CRM LENOVO
• Category Code: NB
• NB Family name: ThinkBook
• Processor manufacturer: Intel
• Processor family: Intel Core i7
• Processor generation: Intel Core i7 (14th gen)
• Processor model: i7-14650HX
• Processor cores: 16
• Processor threads: 24
• Processor boost frequency: 5.2
• Performance cores: 8
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 5.2
• Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.2
• Efficient-core base frequency: 1.6
• Processor cache: 30
• Processor cache type: Smart Cache
• Maximum turbo power: 157
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: IPS
• HD type: WQXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 60
• Contrast ratio (typical): 1200:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Storm Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4060
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel UHD Graphics
• On-board graphics card model: Intel UHD Graphics
• Audio chip: Realtek ALC3306-CG
• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Speakers manufacturer: Harman Kardon
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel HM770
• Ambient light sensor: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Battery technology: Lithium Polymer (LiPo)
• Battery capacity: 80
• Battery life (max): 6.2
• AC adapter power: 300
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/Power on/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ErP Lot 6 ErP Lot 26 Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light
• Sustainability certificates: ENERGY STAR/EPEAT Gold/TCO
• Width: 354.6
• Depth: 258.2
• Height: 19.9
• Weight: 2200
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01309
• Unit Calculated Weight: 3
