ThinkPad

Technical Specifications

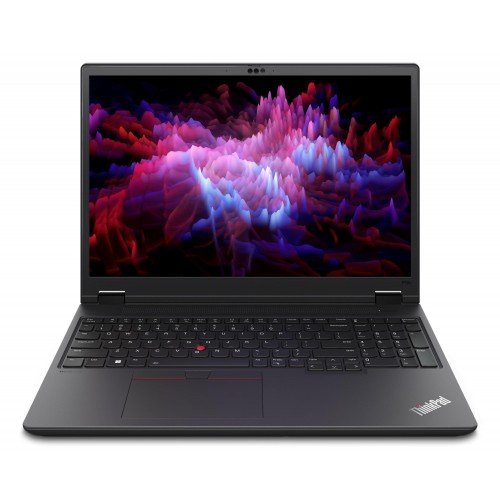

• Summary: Lenovo ThinkPad P16v Gen 2 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 185H. Display diagonal: 40.6 cm (16"), HD type: WQUXGA, Display resolution: 3840 x 2400 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 3000 Ada. Operating system installed: Windows 11 Pro. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkpad/thinkpadp/lenovo-thinkpad-p16v-gen-2-16-inch-intel-mobile-workstation/len101t0101?srsltid=AfmBOoo4-Yo8KfKm3XG_dEUtfjlcM8a6F7vJi5Wd7xgYaNMWgj0cPNfo
• Name: NB TP P16V G2 CU9-185H 16"/64GB/2TB 11P 21KX001URI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 1)
• Processor model: 185H
• Processor cores: 16
• Processor threads: 22
• Processor boost frequency: 5.1
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.1
• Efficient-core Max Turbo Frequency: 3.8
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.3
• Efficient-core base frequency: 1.8
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Processor cache type: Smart Cache
• Maximum turbo power: 115
• Processor base power: 45
• Display diagonal: 16
• Display resolution: 3840 x 2400
• Panel type: IPS
• HD type: WQUXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 800
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 60
• Contrast ratio (typical): 1500:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR 400/Dolby Vision
• Product type: Mobile workstation
• Product colour: Black
• Form factor: Clamshell
• Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI datatype support on NPU: FP16/FP32/Int8
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 32
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Memory channels: Dual-channel
• Non-ECC: Yes
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA RTX 3000 Ada
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics
• Audio chip: Realtek ALC3287
• Audio system: Dolby Audio Premium
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Ethernet LAN data rates: 100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• WWAN: Upgradable
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium Polymer (LiPo)
• Battery capacity: 90
• Fast charging: Yes
• AC adapter power: 170
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/SSD/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• PSTI certified: Yes
• Certification: MIL-STD-810H
• Sustainability certificates: ENERGY STAR/EPEAT Gold/TCO
• Width: 365
• Depth: 262
• Height: 24.66
• Weight: 2220
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0189
• Unit Calculated Weight: 3.5
